SlimeVR_Tracker
SlimeVR DIY Project
Overview
This is a DIY project based on the official SlimeVR documentation. The design is created for educational and hobbyist purposes.
Visuals

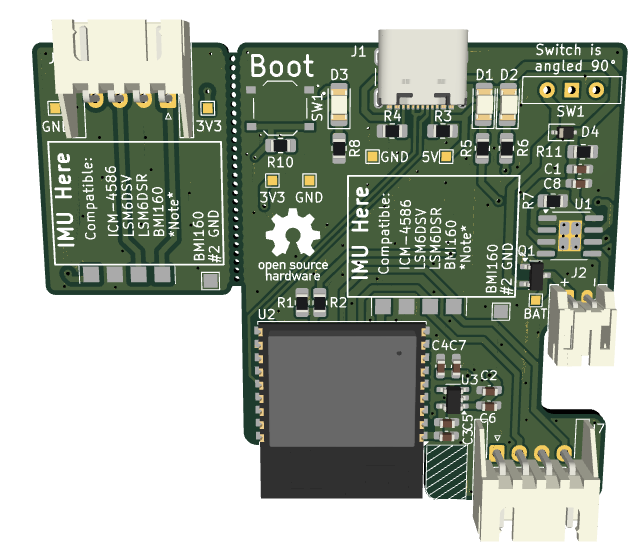

Front side:
Back side:
Case:
Project Information
- KiCad Version: 9.0
-
PCB Version: 3W + 2.6WE (older bigger board files are saved if you want them Version 0.7, Version 0.9 and Version 2.5W)
W: = Wireless
E: = Extension
- Schematic Version: 2.0
- Project Type: DIY/Hobby
- Manufacture: JLCPCB
Hardware Specifications
- MCU: ESP32C3 WROOM 02
- Supported IMU: Any with same pin out as BMI160 module (reference at end)
- Battery Management: Integrated TP4056 charging circuit
- Features: Battery monitoring (Firmware), Power switch, Status LEDs
Firmware
- Will be available when fully tested as functional
Disclaimer
⚠️ Functionality is not guaranteed. This is an experimental project and may contain errors or issues. Use at your own risk.
- Also there can be a few grafical and speling mistakes so be aware of it.
- The images are for reference only until new version arrives, I will make new ones after
Design Files
- PCB layout and schematic files are included in this repository
- Based on official SlimeVR documentation and specifications
Bill of Materials (BOM)
Detailed interactive list of components: 👉 Open Interactive BOM (ibom.html)
Contributing
Feel free to submit issues, suggestions, or improvements via GitHub issues or pull requests.
